The Compact All In One Fixture
with 600W Dual LED Engine
with 600W Dual LED Engine
FLEXON M
Flexon L – 1400W Dual LED Profile Fixture from NXT Lights
Performance
Weight
33 kg
CRI
70/95
Zoom Range
2° to 52°
DUAL LED Engine
2x600W
IP Rating
IP65
Framing Shutters
4 Blades
About
FLEXON M combines class leading output with true hybrid functionality. Engineered by lighting designers, this 2x600W Dual LED fixture integrates beam, spot, and profile capabilities into one compact IP65 unit. It delivers precise optical control and consistent performance in any environment.
One Hybrid Fixture. Complete Workhorse.
Engineered for every task
FLEXON M integrates a class leading 2x600W Dual LED engine with beam, spot, and profile functions in a single unit. Operators can switch between high intensity engines for large stages and high CRI chips for color critical work.
Select your LED Engine
FLEXON M Offers 2x600W LED Engines - Switch easily between two engines for maximum flexibility.
70
95
SELECT YOUR LED ENGINE
70
CRI
95
CRI
600W Dual LED engine Class-Leading Brightness
The powerful dual-mode lighting system transforms fixture planning and significantly reduces gear redundancy. No need to invest in separate units for high CRI and output—this single solution covers both.
600W
600W
High CRI Mode
The High CRI Mode delivers exceptional color accuracy for broadcast, theater, and film—perfect for professional, camera-ready lighting.
High Performance Mode
The Performance Mode with 600W of power ensures maximum output and vivid effects—ideal for concerts, live shows, and large venues.
Choose Engine from Your Console
Switch modes instantly between precision and power—perfect for dynamic productions that require fast adaptation and fewer fixtures.

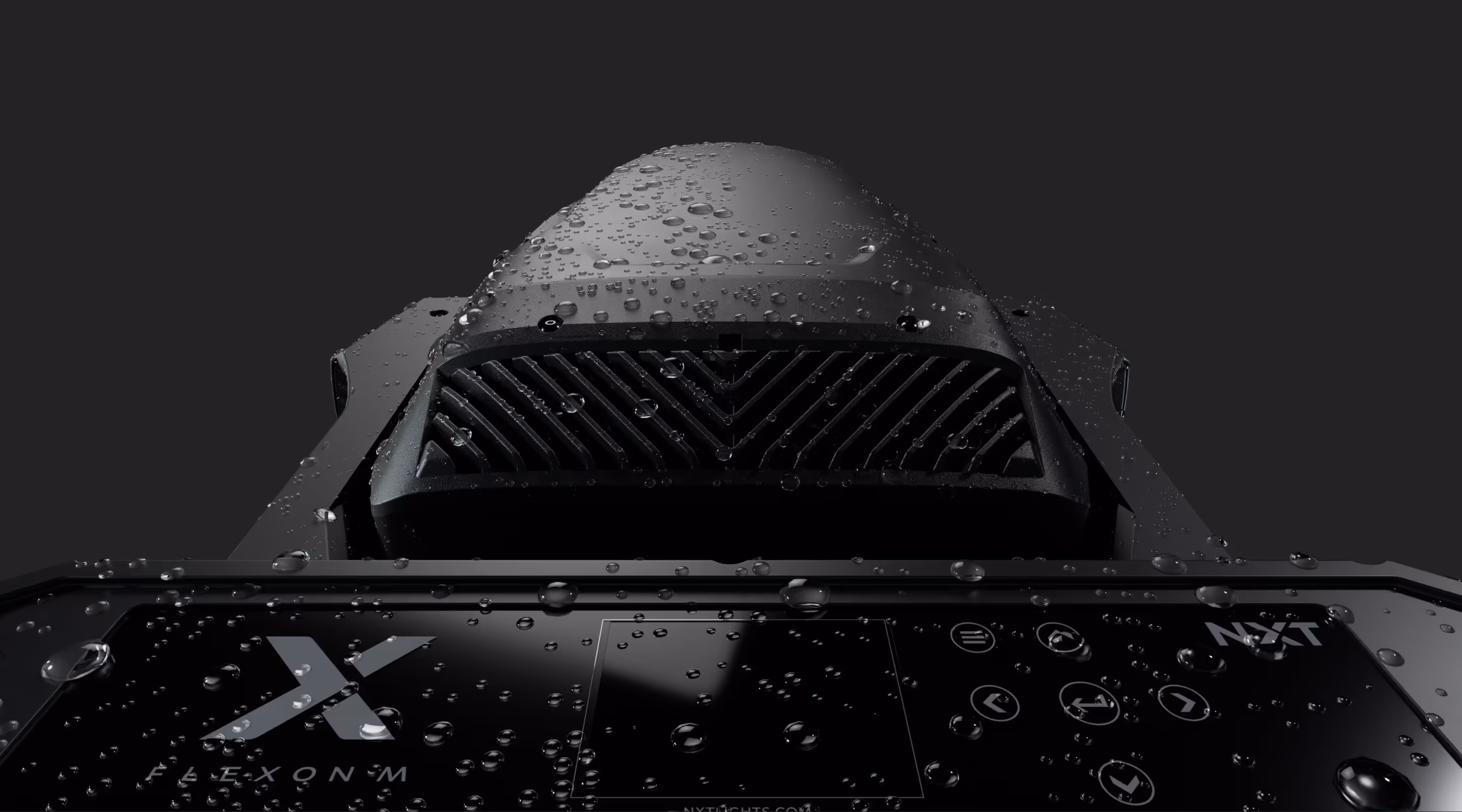

Ready for any weather.
Optimized for harsh conditions - indoors and out. Each fixture is engineered for consistent, reliable performance in demanding indoor and outdoor conditions.
IP65 Rated
Performs in All Conditions
Extreme Temperatures
-20°C to +45°C
The only fixture you need
Master of all tasks
Unmatched Framing Precision
4 high-speed (+/-60°) rotating framing blades with full blackout capability that allows you to shape and cut light exactly where needed.
True Beam Without Reducers
Our proprietary optical design delivers a unique 2° to 54° zoom range with a perfect spot without hotspot, while still achieving extreme 2° narrow beams.
Real Workhorse for Every Challenge
Our engineers created a fixture that can handle every demand of your production on its own. A limitless effects tool with outstanding brightness and all the features you need.
Created by Light Designers, Built for Creators
At NXT, designers shape the future of lighting. NXT products are developed in collaboration with European lighting designers. Every fixture is based on real production needs - focusing on performance, flexibility, and reliability.
Be Part of the NXT Revolution
Tell us what matters to you, and let’s create the future of lighting together.
FLEXON M Specifications
The All In One Fixture
with 600W Dual LED Engine.
with 600W Dual LED Engine.
Source & Optics
Source2x600W 6500K Dual LED Engine
207.700 lx @ 5 m Light OutputZoom Range2°-52°
26:1 high-resolution optic systemCRIPerformance LED Engine - CRI 70
High CRI LED Engine - CRI 95Effects & Features
Gobos7 Rotation Gobos
8 Fixed GobosFraming Shutters4 High Speed (+-60°) Rotating Full Blackout Framing BladesColour mixingCMY , Linear CTO Variable Tint ControlColor Wheel6 Fixed Colours + WhiteMovementPan - 16 bit 540° + Infinite Pan Tilt - 16 bit 270°FrostLight, Heavy Frost FilterElectronic Shutter1 - 25 HzEffect360°Dual-direction Animation High-speed Motorized IrisPrisms (Overlappable)6 faced Linear,
8 Faced CircularControl
Control Channels:46 / 60 CHConnections:XLR-5 pin IN / OUT
RJ45 IN / OUT
powerCON TRUE1 INProtocol:DMX512, RDM, ArtNet/sACNMechanical Specifications

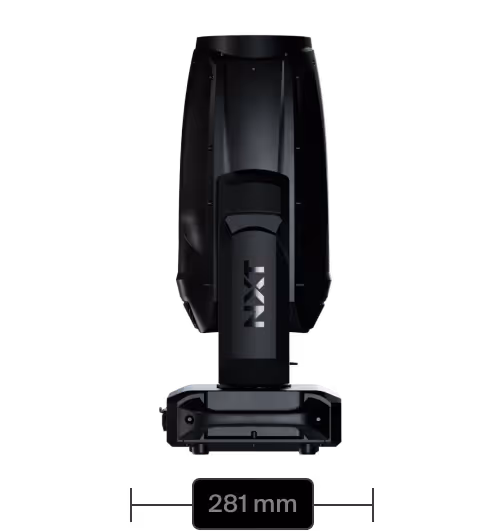

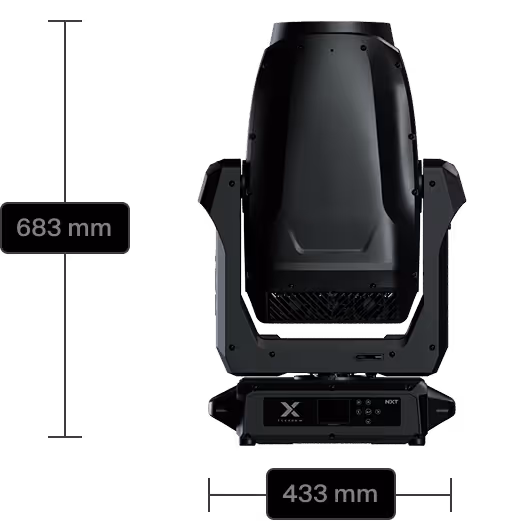

StructureAluminum Alloy StructureVoltageAC 110 V ~ 240 V 50/60 HzRated Power700 WIP RatingIP65Size433 mm × 281 mm × 683 mmNet Weight33 kg
